High Precision Horizontal CNC Pipe Thread Lathe QK1322-1500 With 500MM Max Cutting Length

Brand Name : HR

Model Number : QK1322

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : 23000usd

Payment Terms : T/T, L/C

Supply Ability : 100sets/month

Delivery Time : 30 work days

Packaging Details : Standard material packaging

Power Requirements : 220-380 VAC, 3-Phase, 50-60 Hz

Chuck Size : 500

Spindle Motor Power : 11 kW

Spindle Runout : 0.003mm

Keyword : Turning Machine

Cooling System : Customized

Max Cutting Length : 500MM

Product Type : Horizontal CNC

Structure : Flat Bed Lathe

Swing Over Carrige : 630mm

Number Of Tools : 4

Chuck : 4- jaw manual chuck

Power Source : Electric

Bed Casting Iron : HT300 iron

Contact Now

Product Description

High Precision Horizontal CNC Pipe Thread Lathe QK1322-1500 With 500MM Max Cutting Length

This series CNC pipe threading lathe is meainly designed for processing internal and external pipe threads, including metric,inch and taper threads.

Specification

Model	QK1322
Maximum turning diameter of bed mm	630mm
Maximum turning diameter on the mm	330mm
Maximum processing length	1500mm
Maximum machining diameter	630mm
Chuck	Front and rear 500mm four- jaw manual chuck
Tool holder	4-station electric tool holder
CNC system	GSK 980
Tailstock	Manual
Spindle through hole diameter	220mm
Spindle power	11kw
Spindle speed range	25-89/108-382 r/min
Rail width	550mm
Maximum stroke X	350mm
Maximum stroke Z	1500mm
X-axis repeat positioning accuracy	0.05
Z-axis repeat positioning accuracy	0.05
Machine weight	4200kg
Dimensions	375018301900mm

Machine Details

Manual chuck

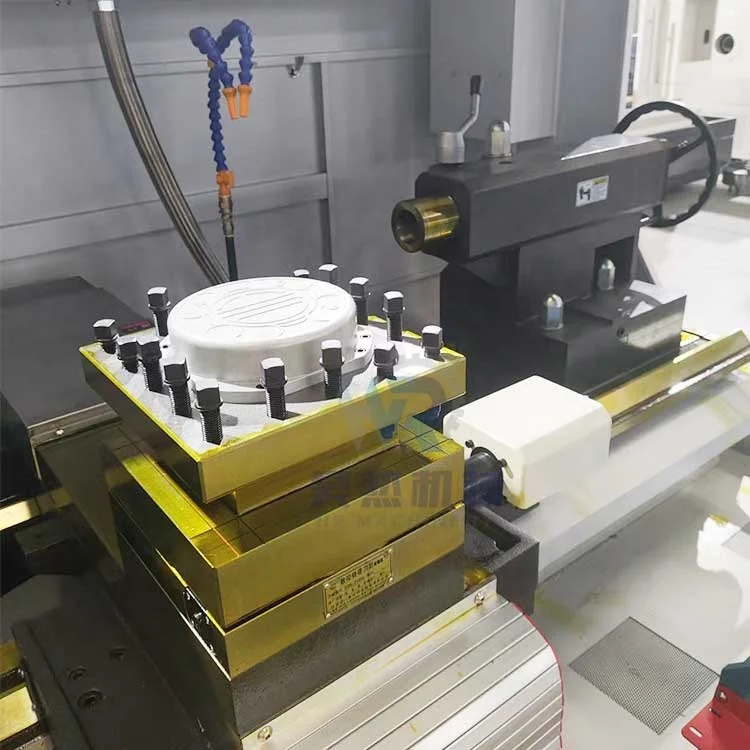

4-station electric turret

Manual tailstock

GSK CNC system

Optional Fanuc Siemens Mitsubishi syntec
